GICO-art-shadow 4 Artnet SPI DMX Madrix Controller 8-Way Output Node 8

madrix artnet spi led controller

ARTNET-6808 is a ARTNET protocol lighting controller, support ART-NET 3, ART-NET,ART-NET , with 8CH DMX/SPI output, with 2 RJ45 ethernet ports. ARTNET-6808 convert ethernet data to DMX512/SPI signals. With strong FPGA, support single & double wire drived IC, like WS2811/2812, TM1812,UCS2903,TLS3001,ucs8904…ect

  • Features
  • FPGA core processor, Gigabit network transmission.
  • Standard ART-NET 3 protocol, compatible with ART-NET , ART-NET 2 downwardly.

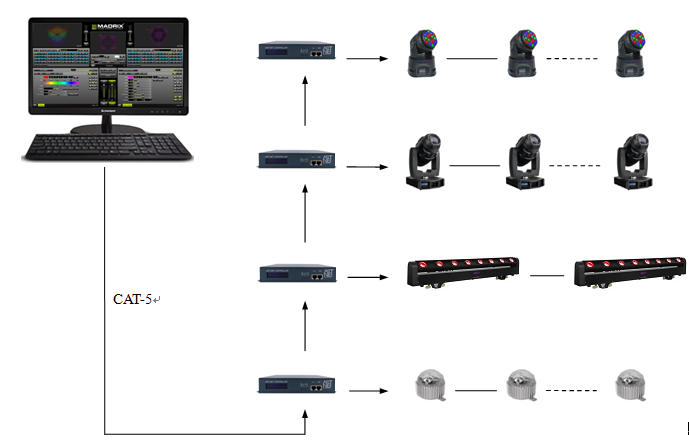

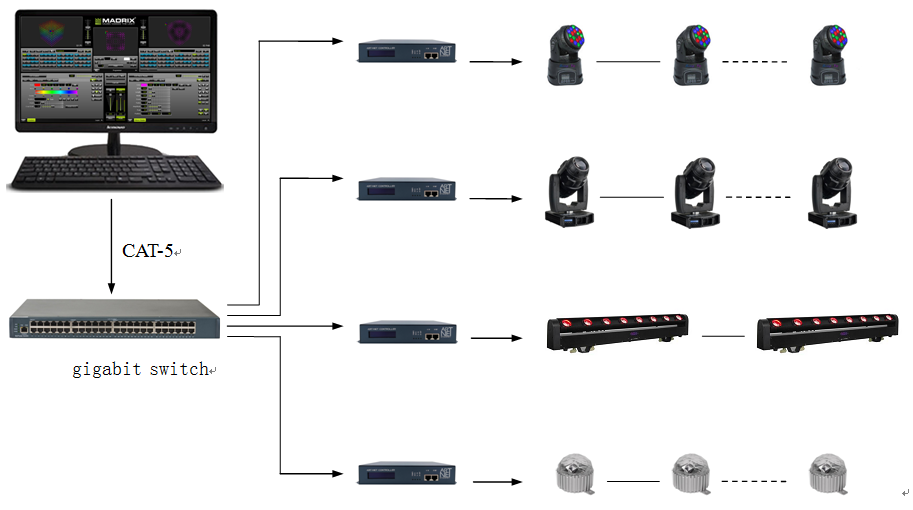

  • ART-NET network cascade connection by ethernet cable
  • support ART-NET single play and ART-NET broadcast
  • 8 outputs, support DMX512, TTL, SPI signals lights.

8 DMX universes or 8×850 pixels (total 6800 pixels)

  • Max support 16bit dimming

Specs:

    Input volt :    AC 90~240V

    Consumption    :   5 W

    Input singnal   :    Artnet

    Network port:    1Gbps Gigabit network (568B)

    Output signal  :    DMX512,TTL,SPI

      (UCS series, TM series, LX series, GW series, TLS series…all kinds of SPI chips)

    Output port   :    8-way 3 pin ports(①GND,②DA/D+,③D-)

   Output pixels qty  :    8 x 850 pixels

   Working Temp  :    -20℃-65℃

   Product size   :    L234×W165×H42mm

   N.W.:    1.4 KG
