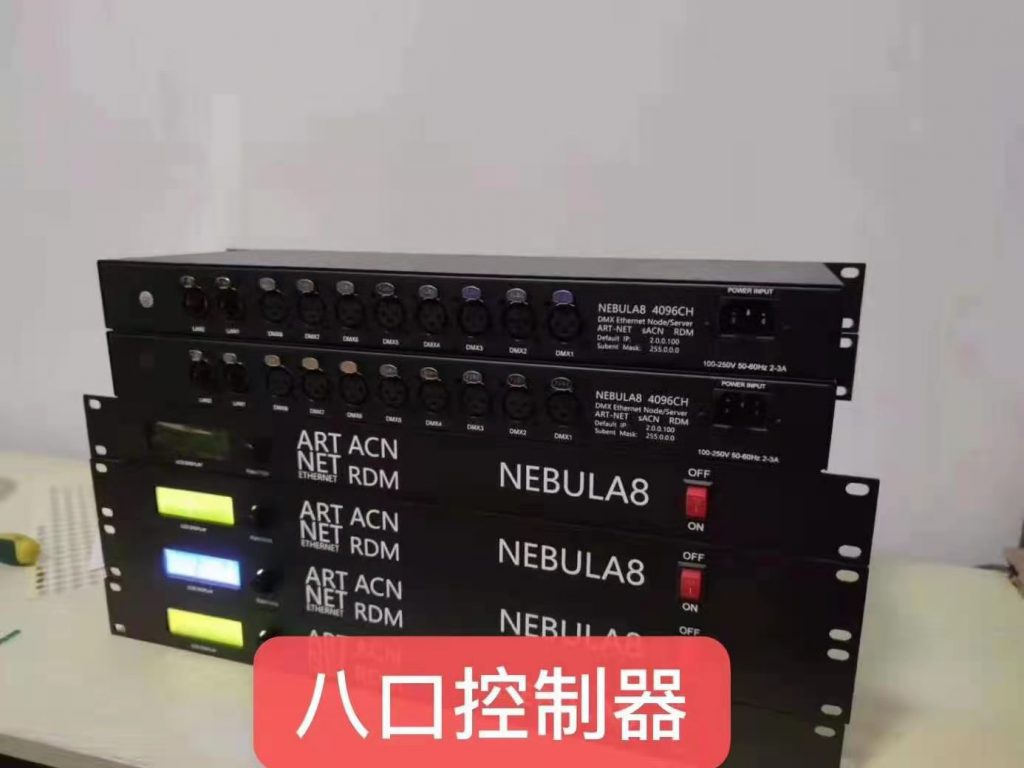

NEBULA8 Artnet-DMX Node 8 Art-Net to DMX converter controller with 8 universes Artnet to DMX Splitter Node support RDM for Madrix

Art-Net/DMX converter node controller with 8 universes

  • Distributes Art-Net data to 8 DMX512 universes (4096 channels)
  • Parallel DMX input possible (1024 channels)
  • 8 XLR plugs (3-pin or 5-in) for DMX output
  • Ethernet port: RJ45, 10/100 Mbps
  • User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
  • LED indication for functions

Description: Multi-purpose, 8 universe DMX processor featuring three modes of operation: Art-Net™ to DMX node, eight universe DMX to Art-Net™ processor or DMX splitter/buffer. It has eight optically isolated DMX outputs via 5-Pin XLR, Neutrik™ etherCON™ input/through and a fused IEC mains input.

Features: 8-way Art-Net™ to DMX processor

Art-Net™ input/through via etherCON™ RJ45

4096 channels

4 push button menu with LCD display

6 user presets

10/100M LAN interface

Supports TCP/IP protocolManual IP address selection

8 DMX universes output s via 3-PIN or 5-Pin XLR

RDM Support

Electronically isolated inputs and outputs

IEC power input19”/1U rack-mountable

SpecificationsPower supply: 100~240V, 50/60Hz
