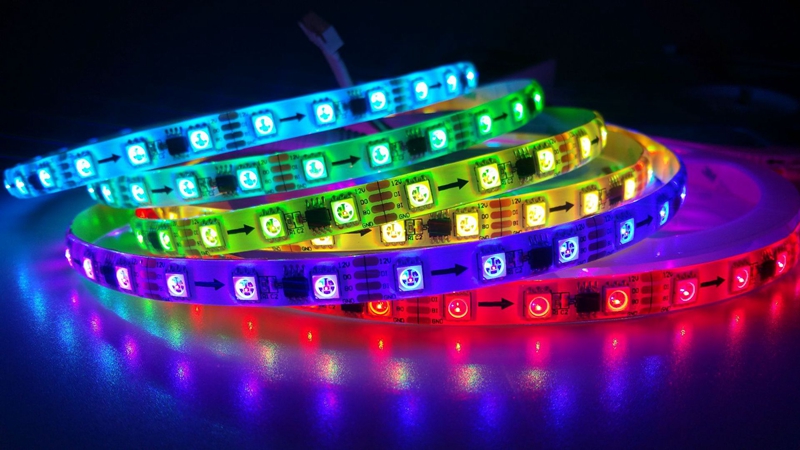

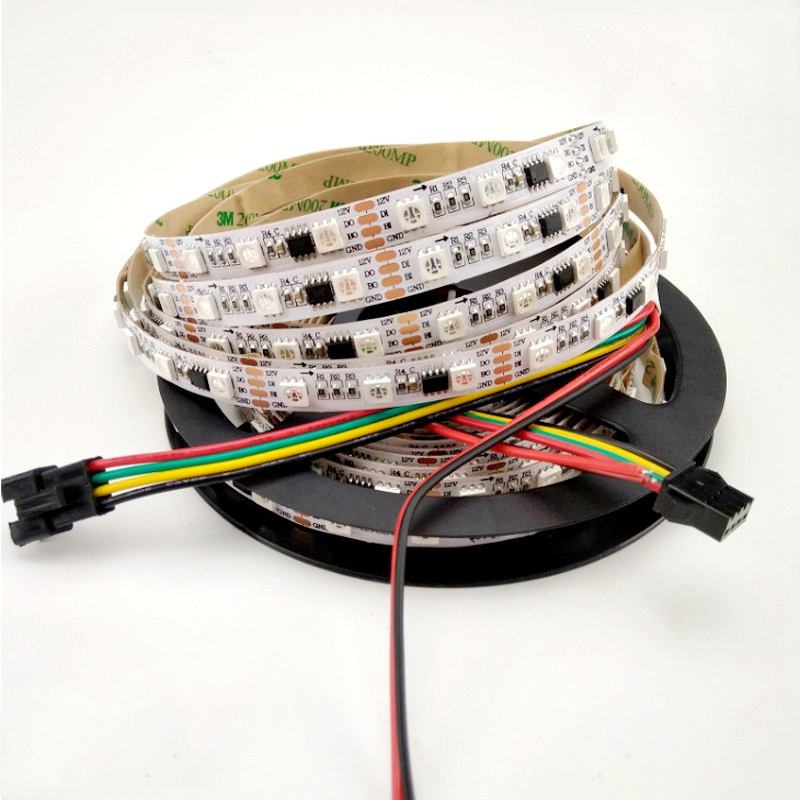

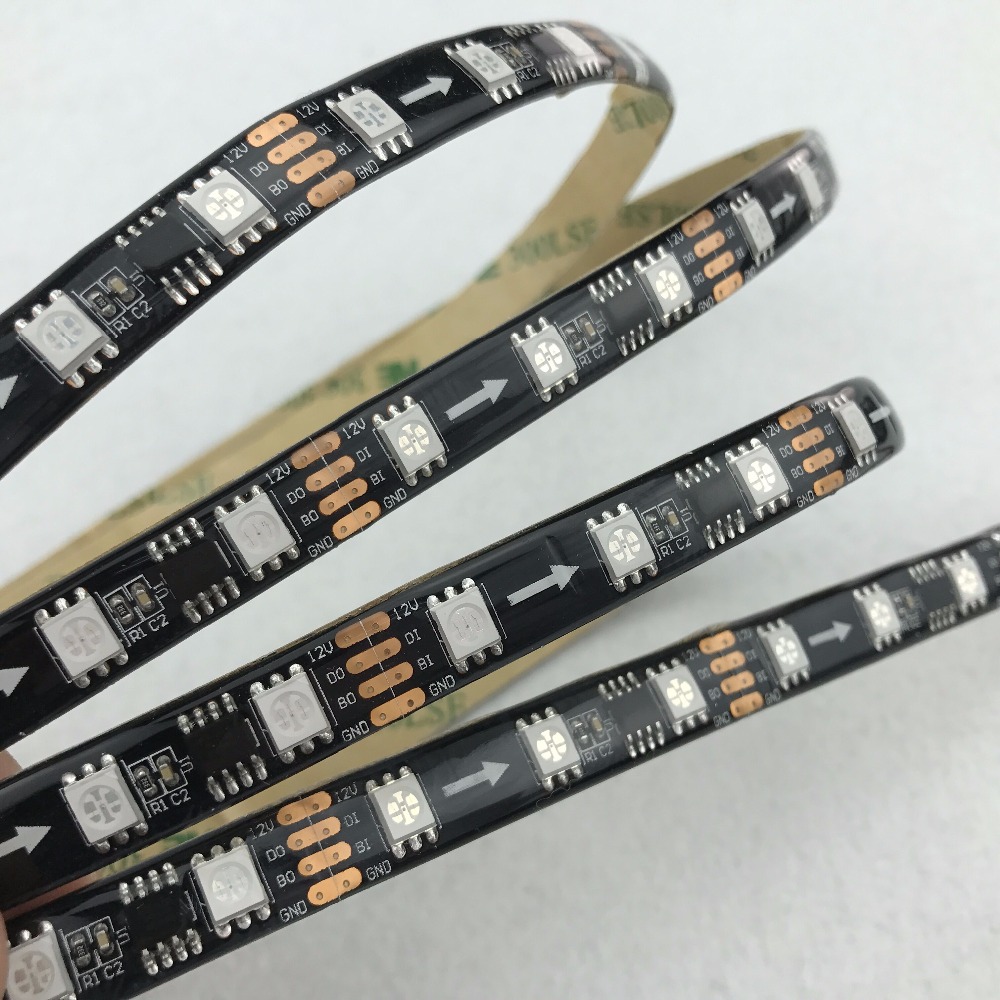

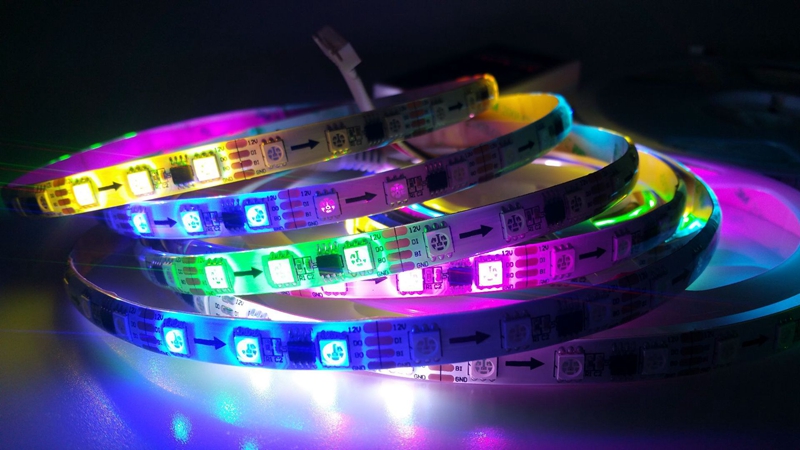

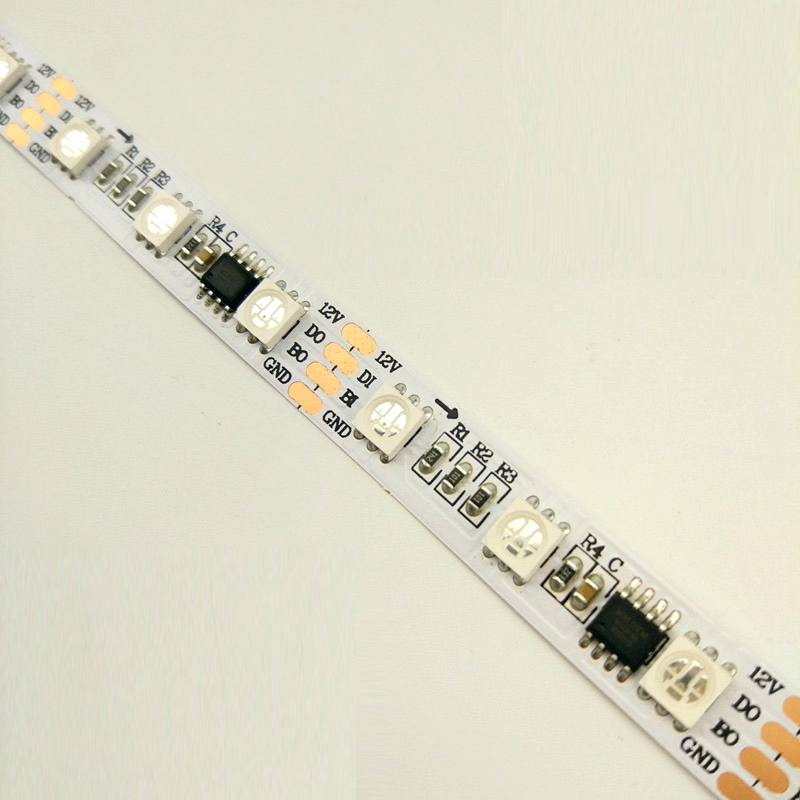

12V WS2818 MT16703 IC Digital Pixel SPI RGB LED Strip 60LEDs/m Breakpoint Continue

SKU: 12-2818-60 Category: Tags: ,

Description

WS2818 or MT16703 IC is break point continue, if one pixel breaks down (not work), it won’t affect other pixels’ working, the signal can continue to move forward.   Breakpoint Continuous Transmission (one pixel damaged will not affect the other LEDs’ working, dual signal wires, signal can jump to transfer).

WS2818 is a new ic chip which updated by WS2811, can use the same led programs as ws2811, ws2812b. can use the same led pixel controller and same led files effects.

Specification

Input voltage:……………….DC12V;

Power:………………………..14.4watt/meter,72watt/roll;

LED resource:…………. ..5050 RGB SMD LED

​Type of IC……………………WS2818; which is similar with WS2811 and UCS1903,TM1804 etc…

Q’ty of LED: …………….60leds/meter,300leds/roll, each 3 LED is separately controlled working as one pixel

Q’ty of IC: ………………..20IC/meter (1 IC drives 3 led chips);

Pixels:……………………..20/meter;

Grey scale: ……………..256;

Bits/color: ……………….8-bits/color;24bit for RGB

FPC size: ………………..Width: 10mm, High: 2.5mm;

FPC color: ……………….white or black PCB

Protection rate…………..Non-waterproof IP30, Waterproof silicon coating IP65, Waterproof silicon tube IP67

Colors: ……………………Full color RGB, dream color changing;

Cuttable:………………….every 3 LEDs is cuttable;
