Description

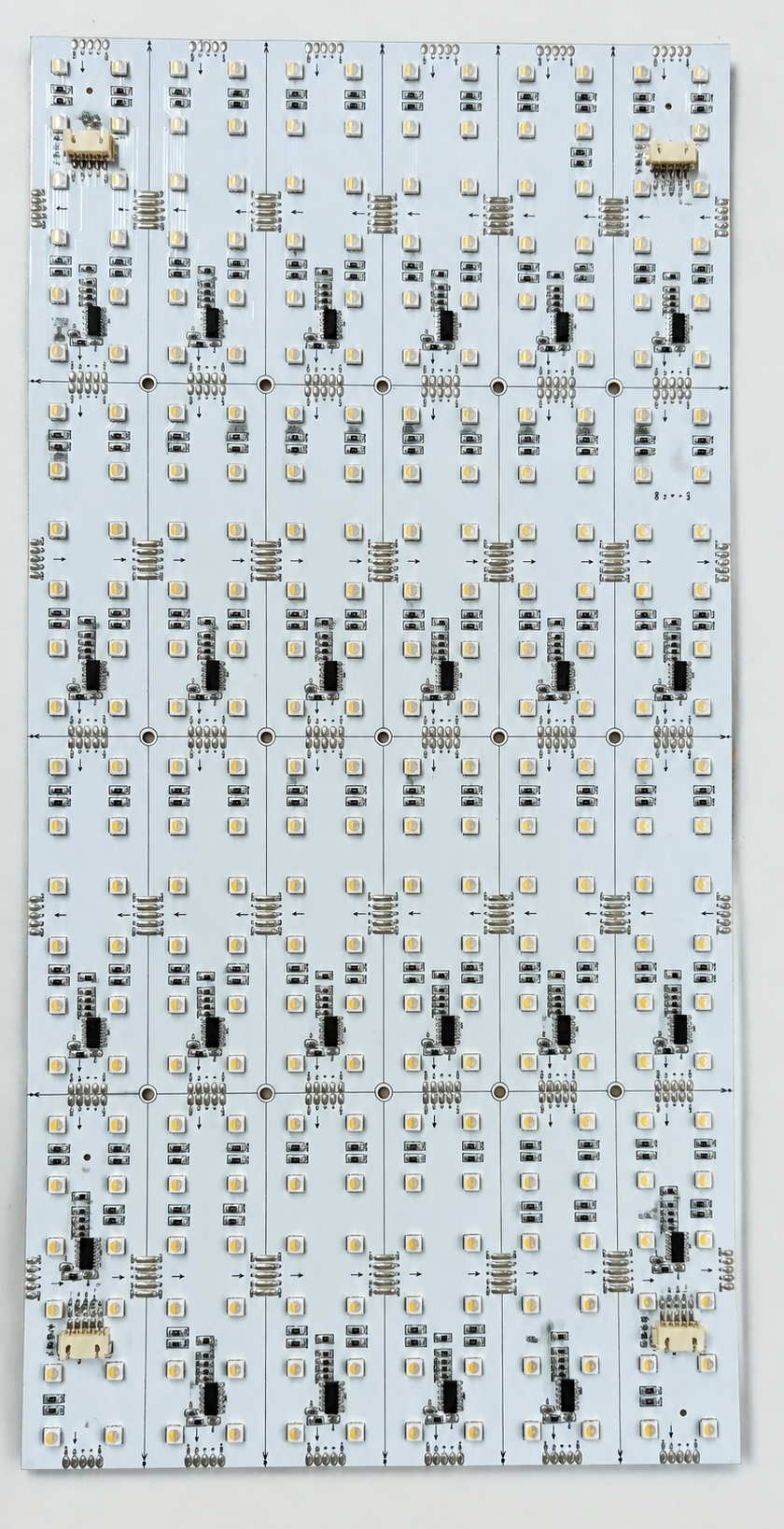

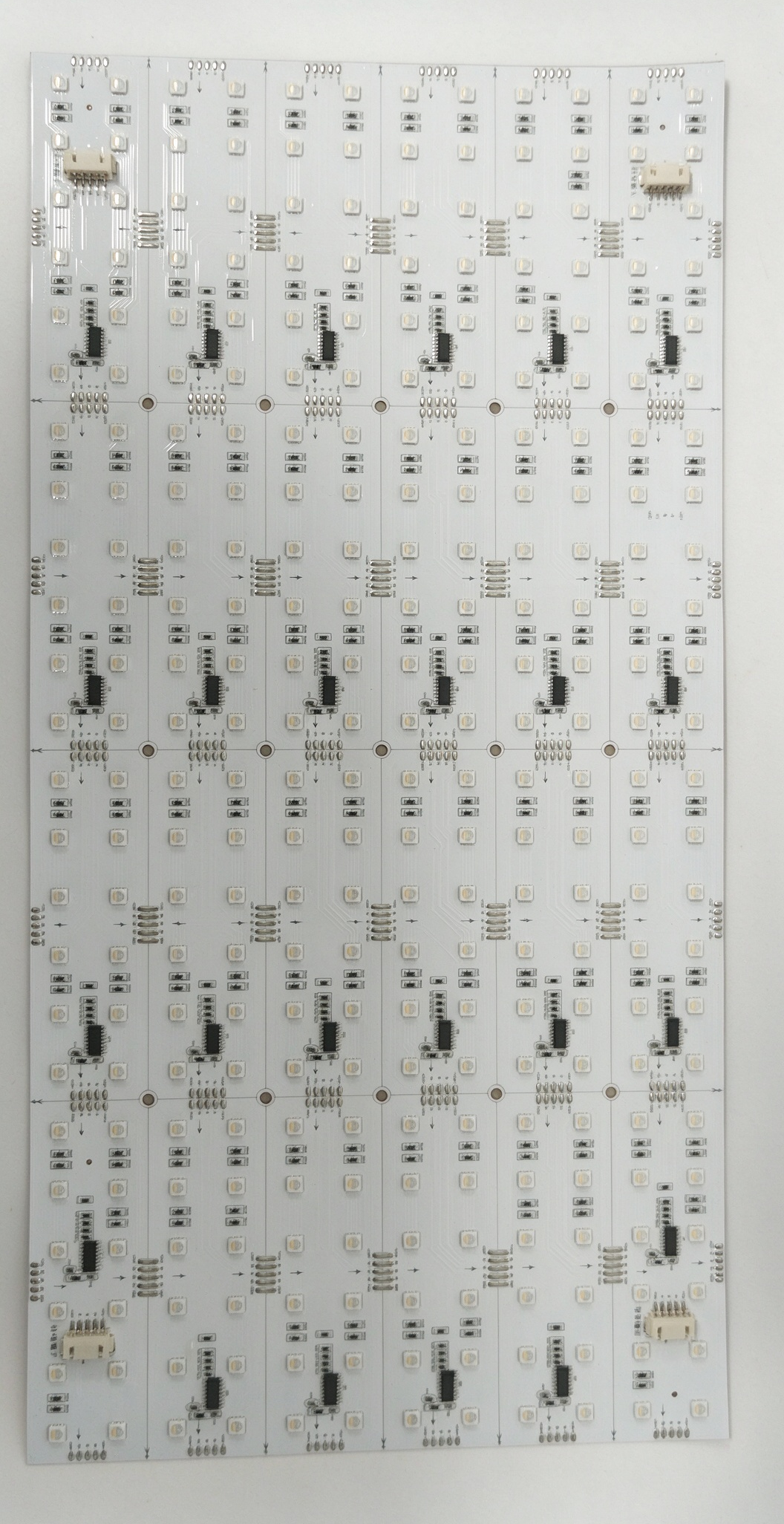

Addressable DMX RGBW Flexible LED Sheet
The Addressable DMX RGBW Flexible LED Sheet is a high-density, fully modular lighting solution designed for dynamic backlighting and creative illumination applications.
Featuring 288 RGBW LEDs and 24 integrated DMX UCS512C4 control ICs on a compact 480mm × 240mm flexible sheet, each section can be individually controlled to create smooth color mixing, flowing effects, and pixel-level lighting animations.
The sheet can be easily cut into 24 independent sections (40mm × 120mm each), providing maximum flexibility for custom installations and various shapes.
With high LED density and uniform light output, the DMX RGBW LED Sheet is ideal for illuminating display cabinets, light boxes, advertising signs, letters, logos, retail showcases, architectural surfaces, and translucent materials such as acrylic, fabric, stone, and glass. It can also be used as a professional photographic lighting source.
Controlled by a standard DMX controller, the built-in Red, Green, Blue, and 3000K White LEDs can be individually mixed to create millions of colors, while programmable DMX effects enable dynamic animations including color chasing, flowing waves, aurora effects, and customized lighting scenes.
The flexible PCB design allows installation on both flat and curved surfaces. The rear side features 3M double-sided adhesive tape for quick and secure mounting. Multiple connection options are available, including plug-and-play cables, hardwired connections, and direct soldering through dedicated solder pads.
Key Features
- Addressable DMX RGBW LED Sheet
- 288 high-density RGBW LEDs per sheet
- 24 × DMX UCS512C4 integrated control ICs
- Individual section addressing and control
- 480mm × 240mm flexible LED sheet design
- Cuttable into 24 independent sections
- Each section: 40mm × 120mm with 12 LEDs
- RGB + 3000K White LED color mixing
- Smooth dynamic lighting effects
- Compatible with standard DMX controllers
- Suitable for flat and curved surfaces
- 3M adhesive backing for easy installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Addressable DMX RGBW Flexible LED Sheet |
| LED Type | RGBW LED |
| LED Quantity | 288 LEDs / sheet, 65Watt/sheet |
| Control IC | UCS512C4 |
| IC Quantity | 24 ICs / sheet |
| Pixel / Section Quantity | 24 controllable sections |
| LEDs per Section | 12 LEDs |
| Section Size | 40mm × 120mm |
| Sheet Size | 480mm × 240mm |
| Cutting Unit | Cuttable every section |
| Control Protocol | DMX512 |
| Color Channels | RGB + 3000K White |
| Color Mixing | Millions of colors |
| PCB Type | Flexible PCB |
| Installation | 3M adhesive backing |
| Installation Surface | Flat and curved surfaces |
| Connection Method | Plug & Play cable / Hardwire / Solder pads |
| Applications | Backlighting, displays, light boxes, signage, showcases, architectural lighting |
Applications
- Retail display backlighting
- Glass showcases and cabinets
- Advertising light boxes
- Channel letters and logos
- Acrylic and translucent material illumination
- Architectural decorative lighting
- Museum and exhibition displays
- Photography and studio lighting
- Custom RGBW pixel lighting projects
